Q5X TRANSMITTERS
SwitchMics
Built for Every Moment
The SwitchMic series—CoachMic, PushMic, ToggleMic, and RefMic HD—delivers crystal-clear audio and reliable control for sports, corporate events, and house of worship. Rugged, intuitive, and ready for high-performance environments where every word matters.
Axient Digital
Analog
- Large, integrated, rocker-style mute switch
- Two clips for horizontal or vertical (pocket) orientation
- Used for coaches and in other applications where confidential transmission is required
- Ideal for corporate and house of worship applications where wearer controlled mute is desired

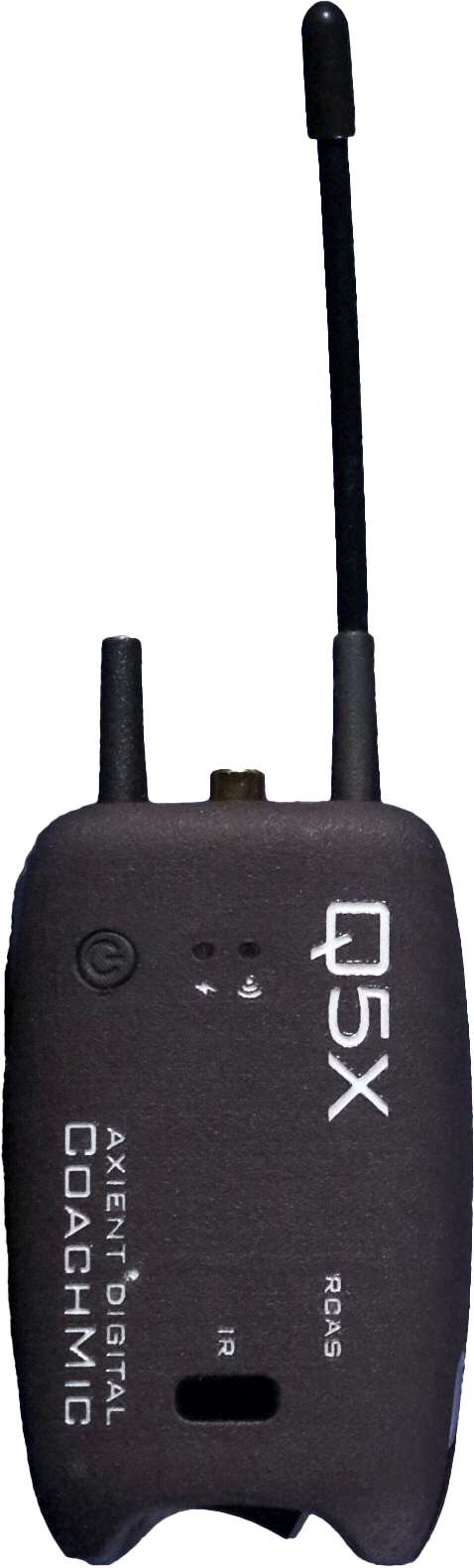

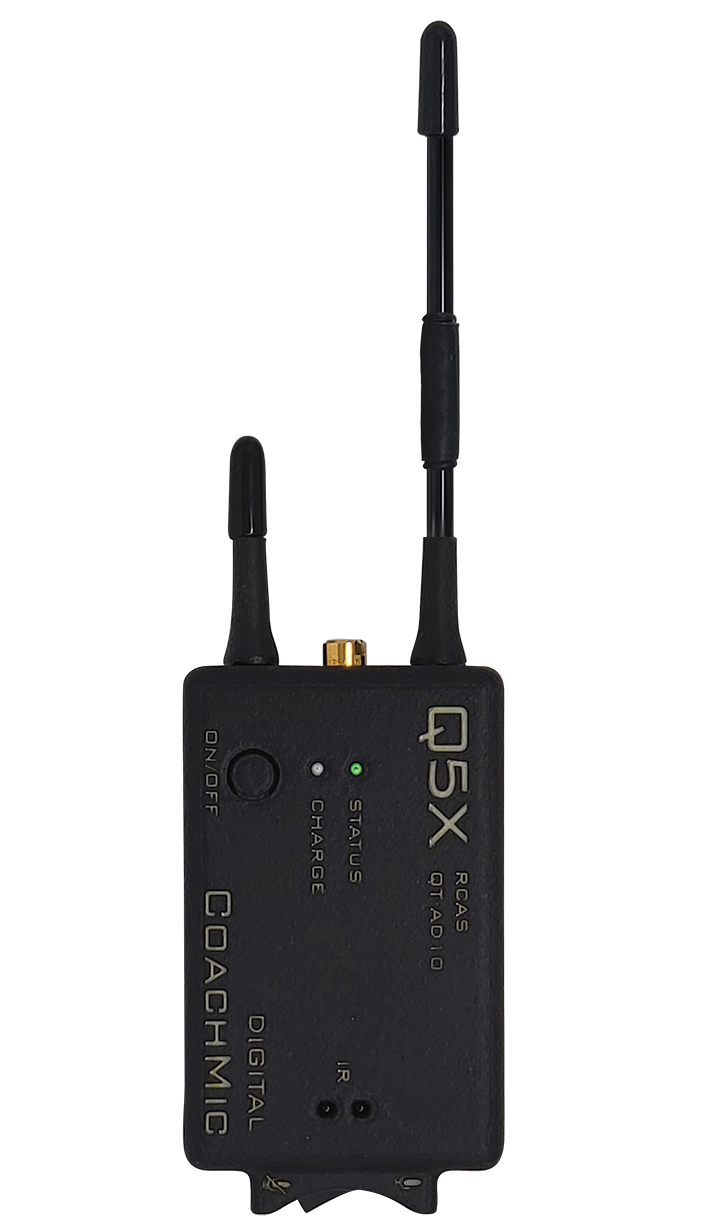

CoachMic™
8 hr
Battery
Removable
Belt Clip
Mute
Override

Frequency Blocks
G56
470 - 636 MHz
6640 Channels
G57
470 - 608 MHz
5520 Channels
K55
606 - 694 MHz
3520 Channels
X55
941 - 960 MHz
780 Channels
$2,995 USD

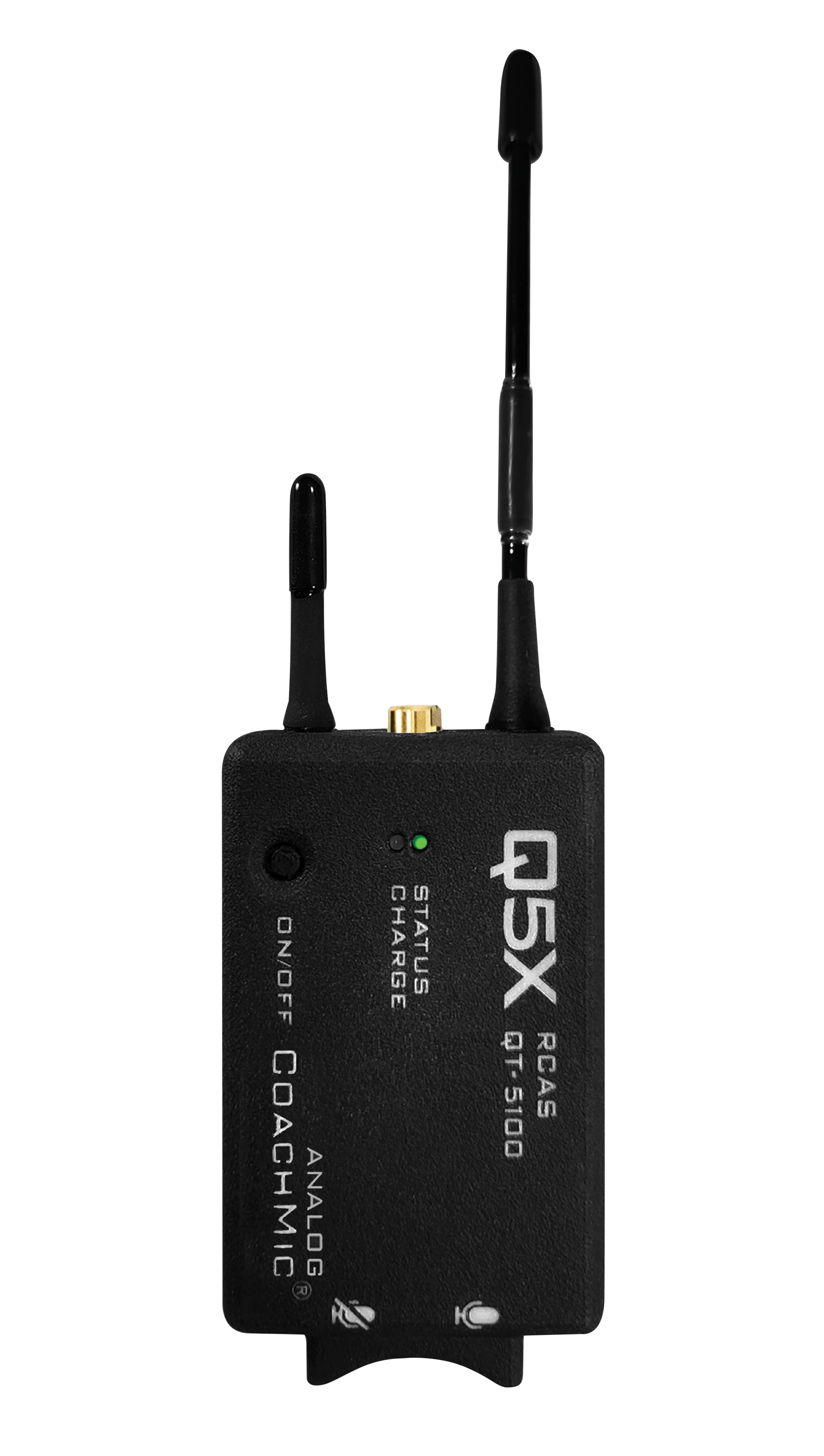

CoachMic™
- Large, integrated, rocker-style mute switch
- Two clips for horizontal or vertical (pocket) orientation
- Used for coaches and in other applications where confidential transmission is required
- Ideal for corporate and house of worship applications where wearer controlled mute is desired
8 hr
Battery
Removable
Belt Clip
Mute
Override

Frequency Blocks
470 - 540 MHz
2800 Channels
525-600 MHz
3000 Channels
600-700 MHz
4000 Channels
$2,795 USD
Axient Digital
- Large, easy-use integrated mute push switch so the wearer can control the mute
- Remote control mute override
- Two clips for horizontal or vertical (pocket) orientation
- Used for coaches and in other applications where confidential transmission is required
- Ideal for corporate and house of worship applications where wearer controlled mute is desired

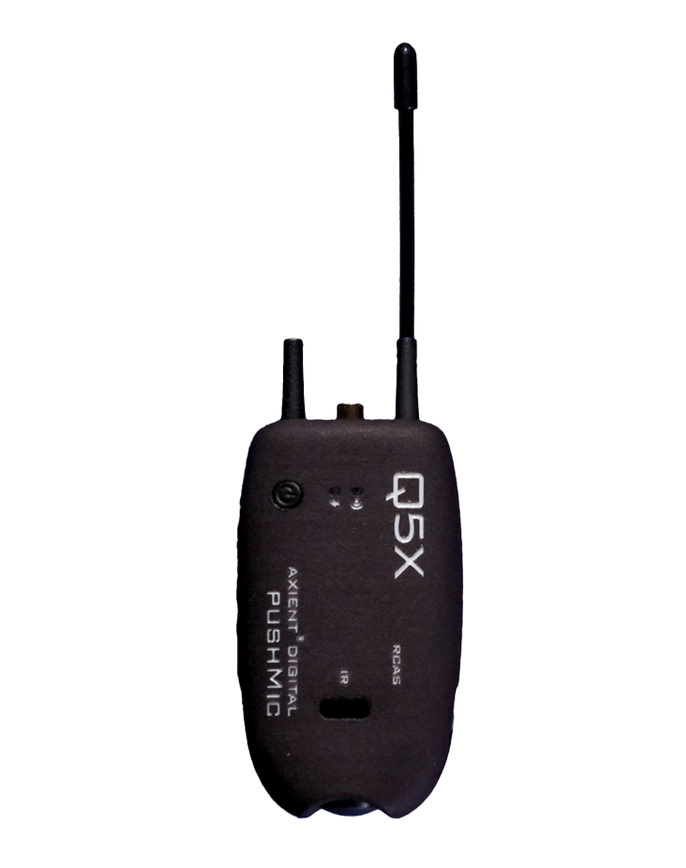

PushMic™
8 hr
Battery
Removable
Belt Clip
Mute
Override

Frequency Blocks
G56
470 - 636 MHz
6640 Channels
G57
470 - 608 MHz
5520 Channels
K55
606 - 694 MHz
3520 Channels
X55
941 - 960 MHz
780 Channels
$2,995 USD
Axient Digital
- Large, easy-use integrated mute switch so the wearer can control the mute
- Remote control mute override
- Two clips for horizontal or vertical (pocket) orientation
- Used for coaches and in other applications where confidential transmission is required
- Ideal for corporate and house of worship applications where wearer controlled mute is desired

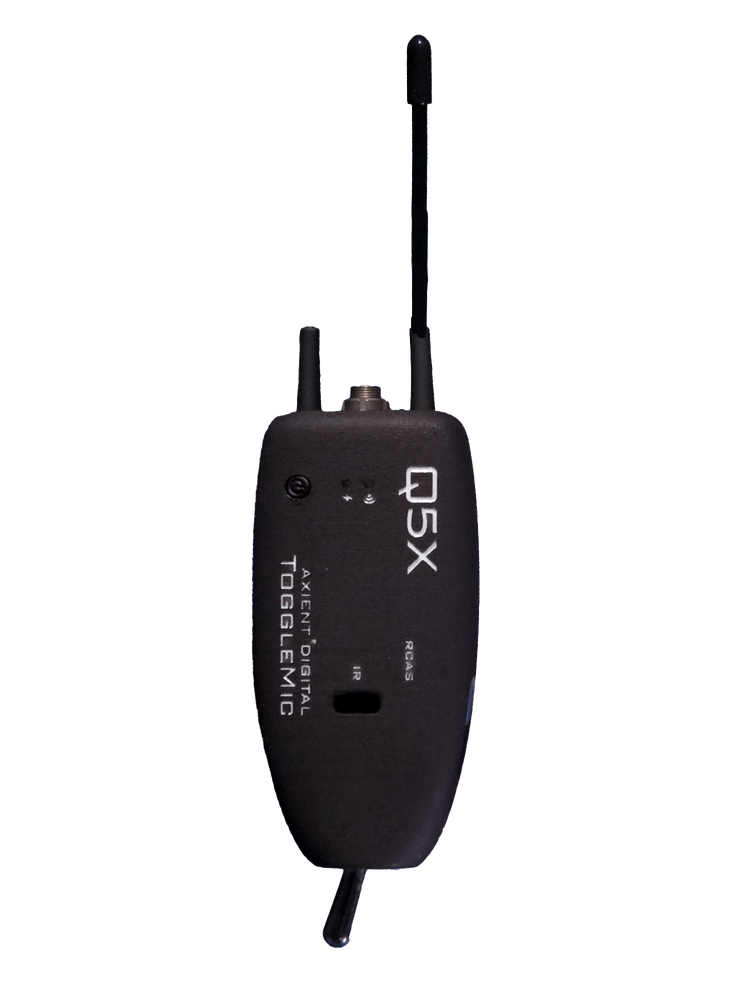

ToggleMic™
8 hr
Battery
Safe &
Comfortable
Mute
Override

Frequency Blocks
G56
470 - 636 MHz
6640 Channels
G57
470 - 608 MHz
5520 Channels
K55
606 - 694 MHz
3520 Channels
X55
941 - 960 MHz
780 Channels
$2,995 USD
Analog
- Large, easy-use integrated mute switch so the wearer can control the mute
- Remote control mute override
- Protective cover over the mic connector for added ruggedness
- Ideal for referees, umpires and other rugged applications

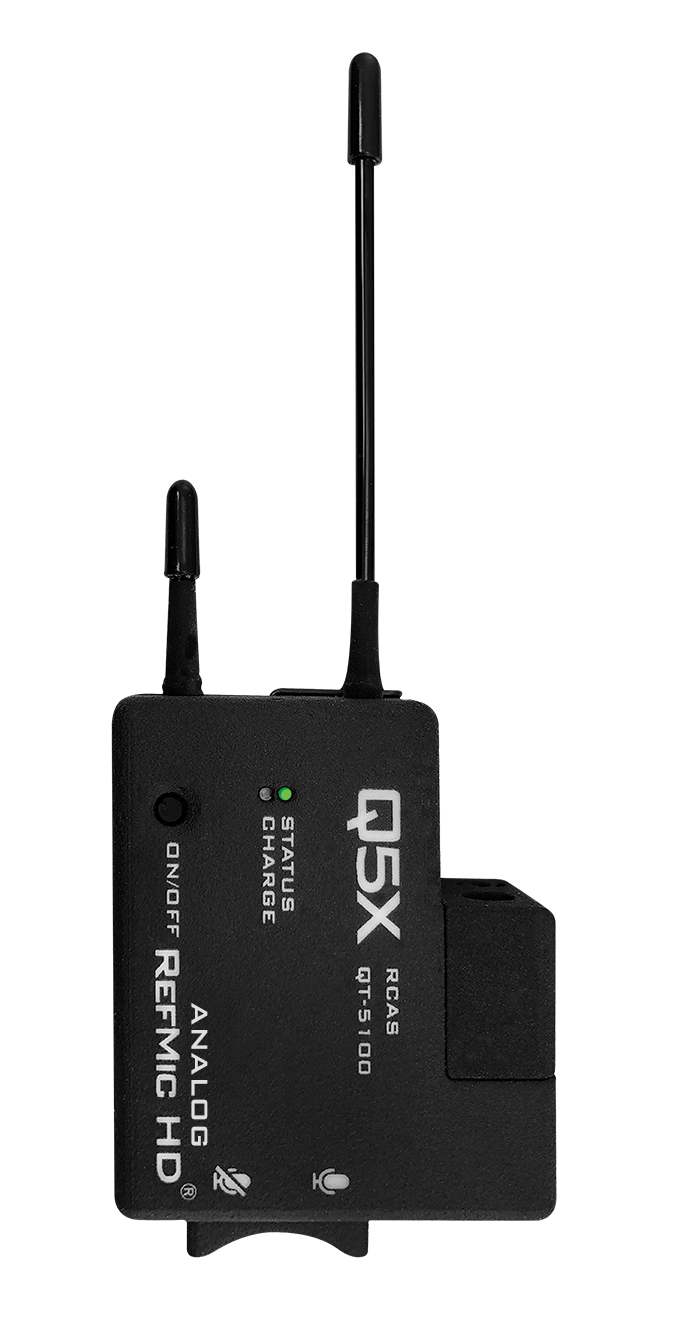

RefMic™ HD
8 hr
Battery
Safe &
Comfortable
Mute
Override
Frequency Blocks
470 - 540 MHz
2800 Channels
525-600 MHz
3000 Channels
600-700 MHz
4000 Channels
$2,995 USD
Tech Specs
Axient Digital CoachMic™/ToggleMic™/PushMic™
Analog CoachMic™/ToggleMic™/PushMic™
Analog RefMic HD™
- Dimensions: 65.5mm x 42mm x 18.5mm
- Weight: including battery, 61.1g
- Housing Material: Nylon Case
- Encryption: AES 256 Encryption
- RF output power: 2mW, 10mW, 20mW (user selectable, country restrictions apply)
- UHF frequency range: 470 to 700 MHz and 941 to 960 MHz in 4 frequency blocks
- Tunable bandwith: Varies by frequency block (25 kHz steps)
- Modulation type: Shure Axient Digital Proprietary
- Mic offset gain range: -12 to 21 dB (in 1 dB steps)
- Pre-amplifier Equivalent Input Noise (EIN): System gain setting ≥ +20: -115 dBV, A-weighted, typical
- Maximum input level: 1 kHz at 1% THD, 3 dBV (5.0V)
- Input impedance: 8.2K with 5V Mic Bias
- Frequency response: 20 Hz to 20 KHz
- Note: system frequency response is dependent on the microphone element
- Audio connector: 1 pin Lemo
- Occupied bandwidth: <200 kHz
- Channel-to-Channel spacing
- Standard Mode – 350 KHz
- High Density Mode – 125 KHz
- Antenna: 1/4 wave UHF and 2.4 GHz
- Antenna impedance: 50 Ohm
- Battery: Internal Lithium Polymer
- Operating time: (Battery) estimated 8 hrs @ 10mW
- Operating temperatures: -20⁰C to 50⁰C
- Storage temperatures: -20⁰C to 45⁰C
- Approvals: FCC, CE, Industry Canada
- Compatible Receivers: AD4Q, AD4D, AD5XD
- Dimensions: 65.5mm x 42mm x 18.5mm
- Weight: including battery, 58.1g
- Housing Material: Nylon Case
- RF output power: 10mW to 100mW (user selectable, country restrictions apply)
- UHF frequency range: 470 to 700 MHz in 3 frequency blocks
- Tunable bandwith: Varies by frequency block (25 kHz steps)
- Modulation: FM
- Nominal deviation: +/- 40 kHz
- Peak deviation: +/- 54 kHz
- Pre-emphasis: 50 us
- Compander: Q5X DCS-QT
- Signal to Noise: 105dB (A) RMS
- Frequency stability: +/- 0.001%
- Spurious emission: <- 60 dBc
- Total harmonic distortion (THD): 0.3% at nominal deviation
- Frequency response: 50 Hz to 17,000 Hz
- Note: System frequency response is dependent on the microphone element
- Audio connector: 1 pin Lemo
- Antenna: 1/4 wave UHF and 2.4 GHz
- Battery: Internal Lithium Polymer
- Operating time: (Battery) estimated 8 hrs @ 50mW
- Operating temperatures: -10⁰C to 45⁰C
- Approvals: FCC, CE, Industry Canada
- All Analog transmitters have 2 Q5X Modes. Choose an additional Mode for Lectro UCR/SRc, Shure UR or Sennheiser HiDyn plus receiver compatibility.
- Compatible Receivers: UCR411a – Lectrosonics , SRc Series – Lectrosonics , Venue2 – Lectrosonics, UHF-R Specification Sheet, EM 3732-COM-II P, Wireless microphone set EW 500 G4 945 | Sennheiser, MCR54 , MCR54-DUAL , MRK16
- Dimensions: 66.5mm x 57.5mm x 20mm
- Weight: including battery, 66.9g
- Housing Material: Nylon Case
- RF output power: 10mW to 100mW (user selectable, country restrictions apply)
- UHF frequency range: 470 to 700 MHz in 3 frequency blocks
- Tunable bandwith: Varies by frequency block (25 kHz steps)
- Modulation: FM
- Nominal deviation: +/- 40 kHz
- Peak deviation: +/- 54 kHz
- Pre-emphasis: 50 us
- Compander: Q5X DCS-QT
- Signal to Noise: 105dB (A) RMS
- Frequency stability: +/- 0.001%
- Spurious emission: <- 60 dBc
- Total harmonic distortion (THD): 0.3% at nominal deviation
- Frequency response: 50 Hz to 17,000 Hz
- Note: System frequency response is dependent on the microphone element
- Audio connector: 1 pin Lemo
- Antenna: 1/4 wave UHF and 2.4 GHz
- Battery: Internal Lithium Polymer
- Operating time: (Battery) estimated 8 hrs @ 50mW
- Operating temperatures: -10⁰C to 45⁰C
- Approvals: FCC, CE, Industry Canada
- All Analog transmitters have 2 Q5X Modes. Choose an additional Mode for Lectro UCR/SRc, Shure UR or Sennheiser HiDyn plus receiver compatibility.
- Compatible Receivers: UCR411a – Lectrosonics , SRc Series – Lectrosonics , Venue2 – Lectrosonics, UHF-R Specification Sheet, EM 3732-COM-II P, Wireless microphone set EW 500 G4 945 | Sennheiser, MCR54 , MCR54-DUAL , MRK16
