Reliable Performance, Every Time

The Analog M3 Mobile delivers rock-solid wireless performance with crystal-clear audio. Compact and engineered for critical environments where flawless communication is essential.

One-channel, true dual-diversity, mobile receiver (ENG), in a commercial grade aluminum case, tunable to frequencies from 470MHz – 700MHz.

M3 Mobile Receiver

One

Channel

True

Dual-Diversity

Analog

Receiver

$1,795 USD

Tech Specs

Specification Details
Dimensions 112mm x 82mm x 24mm
Weight 291.4g (including battery)
Companding Q5X companding – compatible with QT-5100 and Shure UHFR transmitters
Output Mini XLR balanced output – Balanced: -18dBm (50mV)
Headphone Jack Mini headphone jack
Antenna Connectors SMA antenna connectors – includes 2 water-resistant SMA antennas
DC Input Connectors Barrel Connector (6–12v DC), micro USB, Hirose
Battery Charger Includes 12V DC wall-wart charger
Battery Rechargeable lithium-ion battery
Frequency Range 470 MHz to 700 MHz
Tuning Steps Programmed in 25kHz steps
Displays OLED front and top display screens
Frequency Stability ±0.005%
Sensitivity -100dBm at S/N ratio > 80dB
Image Rejection > 80dB
Signal-to-Noise Ratio (S/N Ratio) > 108dB

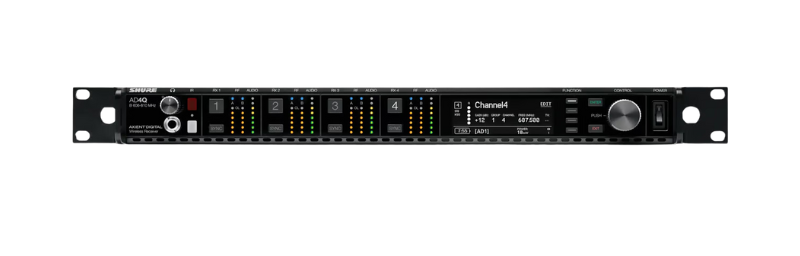

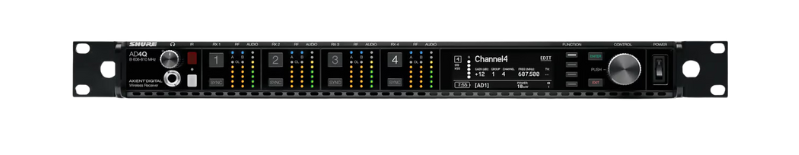

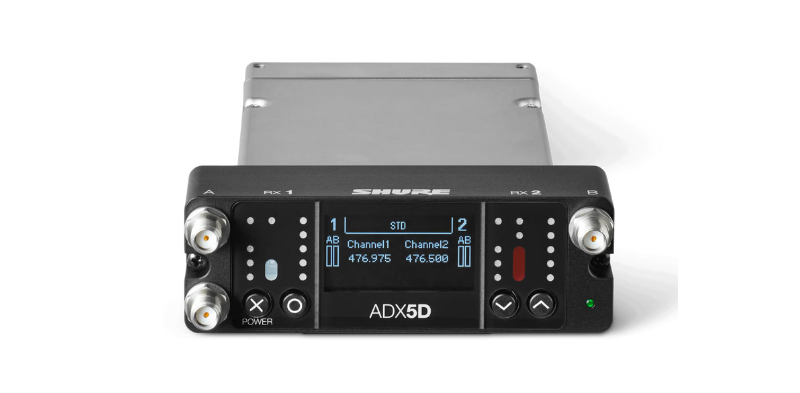

Q5X Compatible Axient Digital Receivers

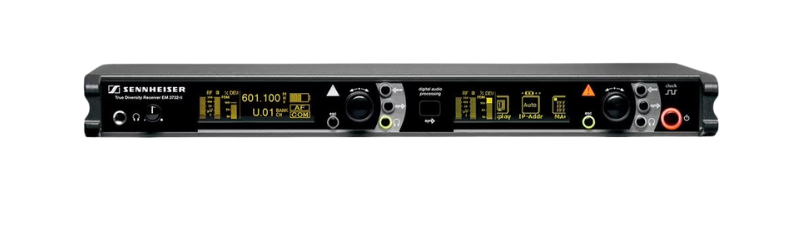

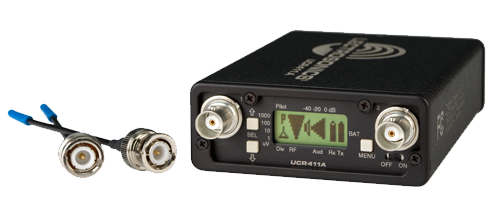

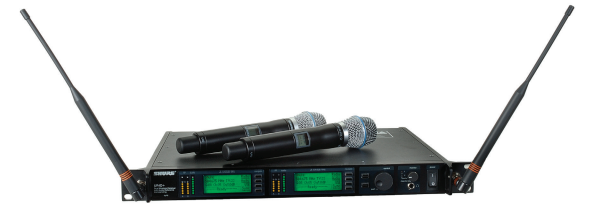

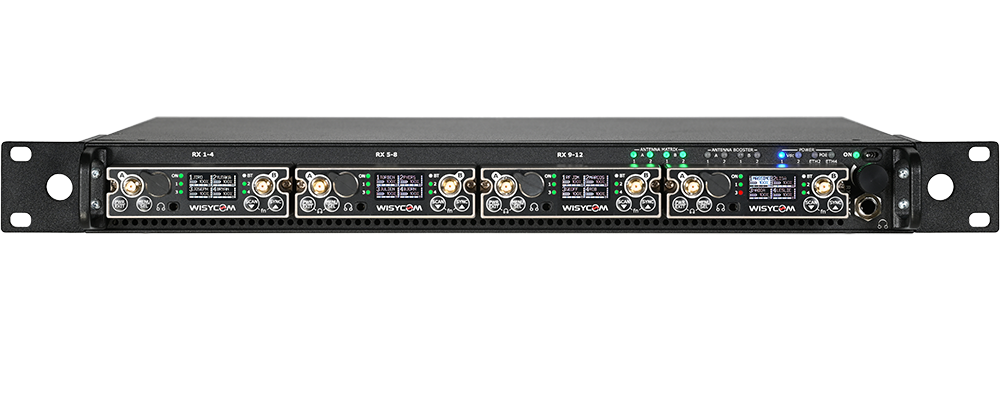

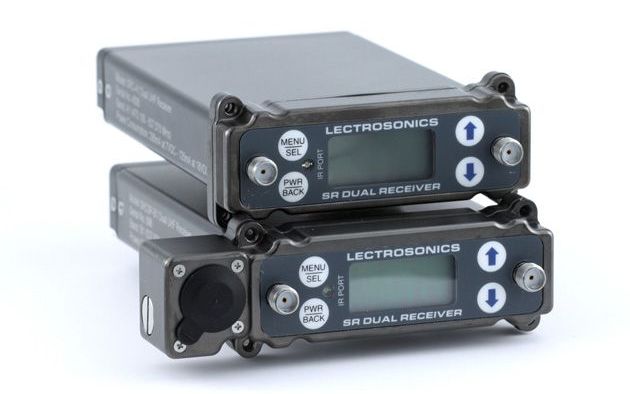

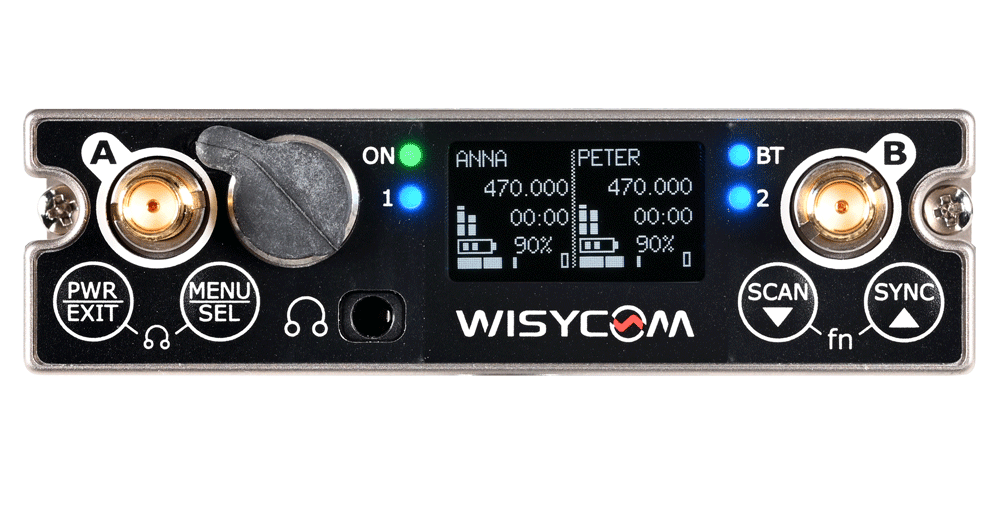

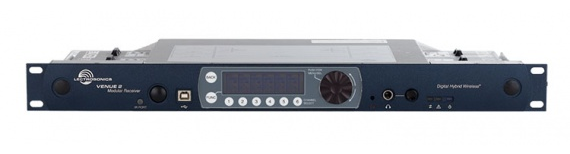

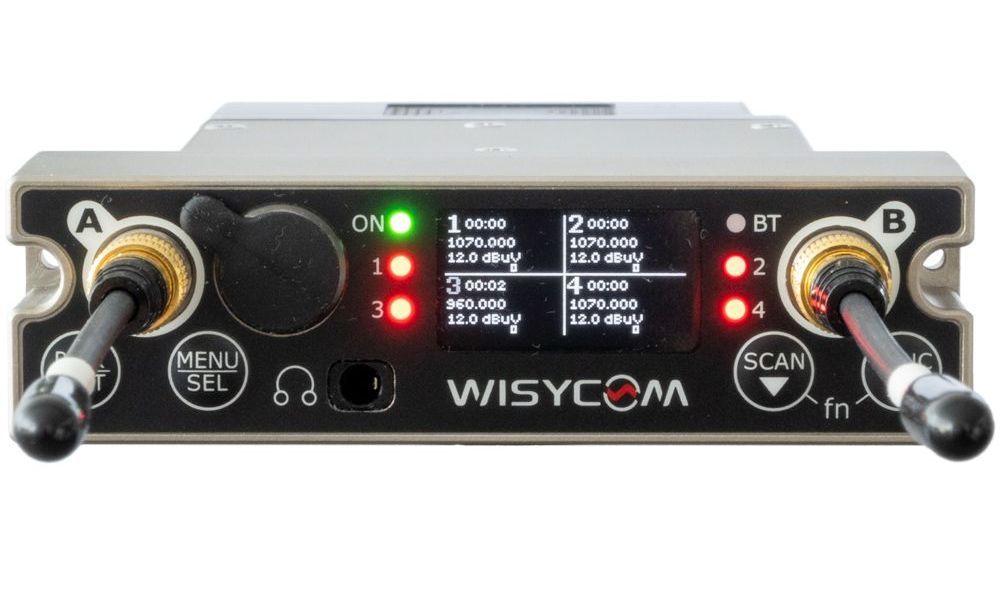

Q5X Compatible Analog Receivers
