Q5X TRANSMITTERS

PlayerMic®

Flexible. Thin. Safe.

Developed for the NBA. The PlayerMic the world’s first flexible rubber bodypack and it’s designed to protect the player from injury if they fall on it or take a direct hit.

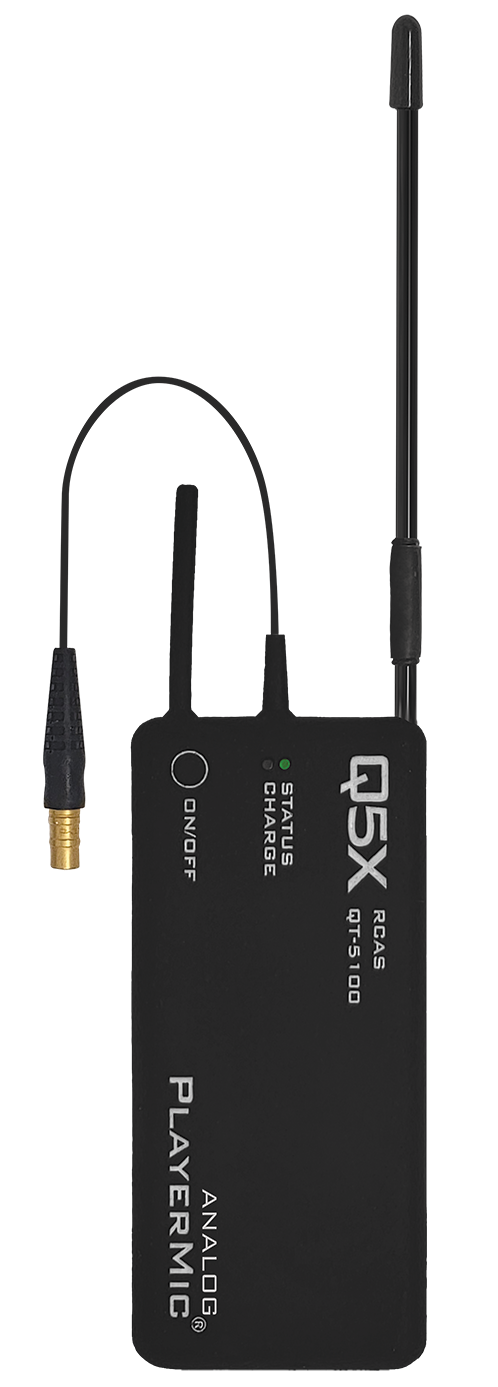

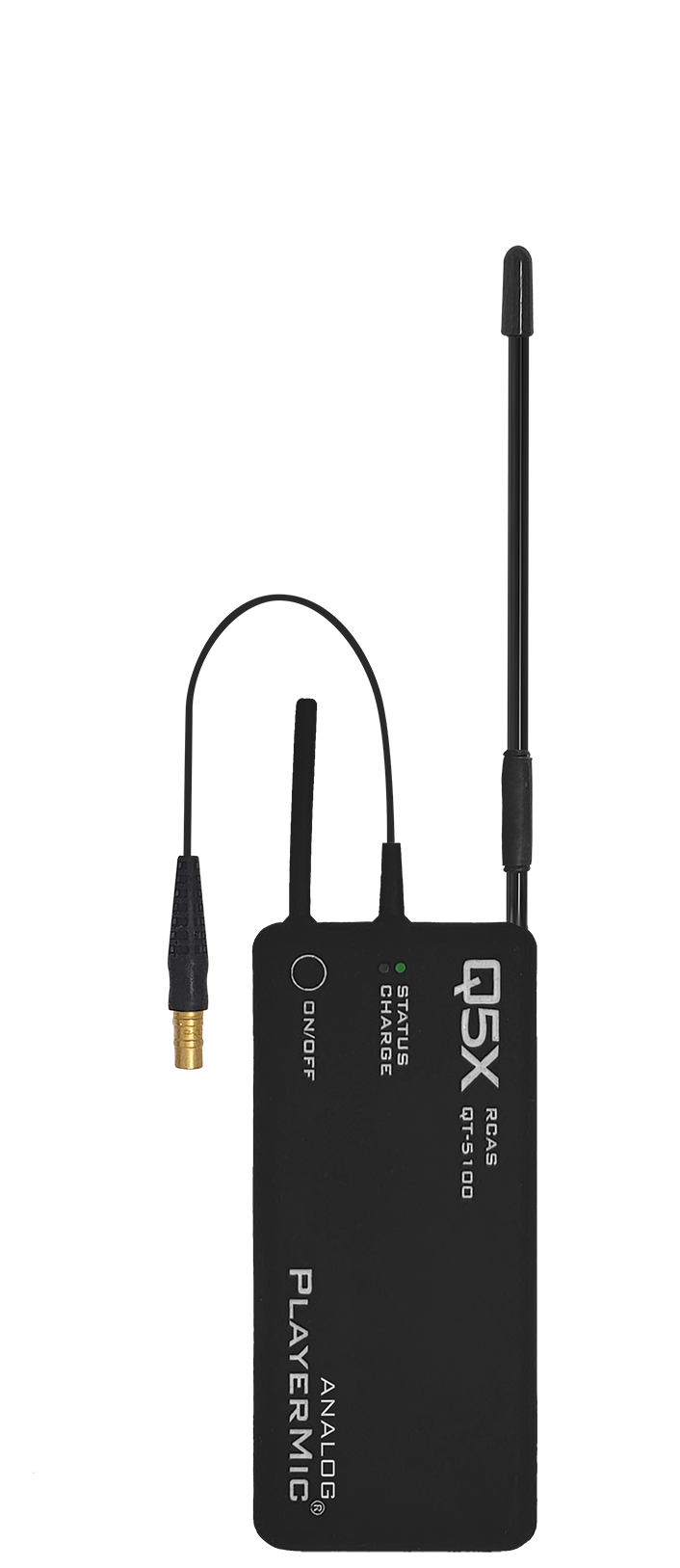

PlayerMic®

Micro-sized transmitter in a flexible polymer, sweatproof housing.

With an internal lithium polymer rechargeable battery and Lemo connector for a removable lavalier.

  • Available in 1-Pin LEMO, 3-Pin LEMO or Microdot microphone connector

8 hr

Battery

Safe &

Comfortable

Thin

& Flexible

Frequency Blocks

G56

470 - 636  MHz

G57+

470 - 616 MHz

K55

606 - 694  MHz

X55

941 - 960  MHz

$2,695 USD

Micro-sized transmitter in a flexible polymer, sweatproof housing.

With an internal lithium polymer rechargeable battery and Lemo connector for a removable lavalier. 40% smaller than the original PlayerMic.

  • Available in 1-Pin LEMO, 3-Pin LEMO or Microdot microphone connector

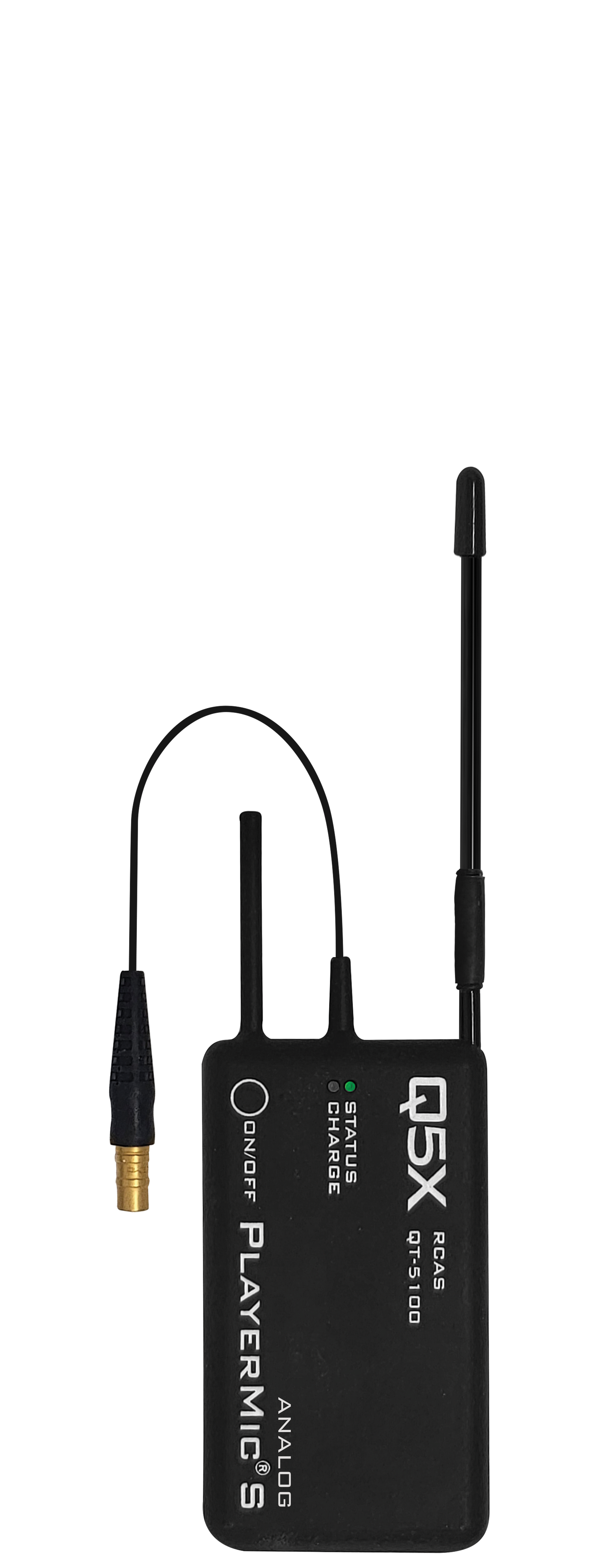

PlayerMic®S

4 hr

Battery

Safe &

Comfortable

Thin

& Flexible

Frequency Blocks

G56

470 - 636  MHz

G57+

470 - 616 MHz

K55

606 - 694  MHz

X55

941 - 960  MHz

$2,695 USD

Tech Specs

Analog Digital
Specification Analog PlayerMic Analog PlayerMic S Digital PlayerMic Digital PlayerMic S
Dimensions (mm) 97.5 x 42 x 11.5 74.5 x 42 x 11.5 93.5 x 41.5 x 11.5 74.5 x 41.5 x 11.5
Weight (g) 62.4 46.3 60.7 48.6
Housing Material Polymer Polymer Polymer Polymer
RF Output Power 10–100 mW 10–100 mW 2, 10, 20 mW 2, 10, 20 mW
Frequency Range (MHz) 470–700 470–700 470–700, 941–960 470–700, 941–960
Frequency Blocks 470–540, 525–600, 600–700 470–540, 525–600, 600–700 G56, G57, K55, X55 G56, G57, K55, X55
Modulation Type FM FM Shure Axient Digital Shure Axient Digital
Encryption No No AES 256 AES 256
Battery Type Internal Li-Polymer Internal Li-Polymer Internal Li-Polymer Internal Li-Polymer
Battery Life 8 hrs @ 50 mW 4 hrs @ 50 mW 8 hrs @ 10 mW 4 hrs @ 10 mW
Audio Connector 1-pin LEMO 1-pin LEMO 1-pin LEMO 1-pin LEMO
Frequency Response (Hz) 50–17,000 50–17,000 20–20,000 20–20,000
Signal-to-Noise Ratio (dB) 105 A-weighted 105 A-weighted Not specified Not specified
THD (%) 0.3 @ nominal dev. 0.3 @ nominal dev. Not specified Not specified
Remote Control RCAS via 2.4 GHz RCAS via 2.4 GHz RCAS via 2.4 GHz RCAS via 2.4 GHz
Compatible Receivers Q5X QR Series Q5X QR Series Shure Axient Digital Shure Axient Digital
Operating Temp (°C) -10 to 45 -10 to 45 -20 to 50 -20 to 50
Storage Temp (°C) -20 to 45 -20 to 45 -20 to 45 -20 to 45
Approvals FCC, CE, IC FCC, CE, IC FCC, CE, IC FCC, CE, IC

Other Transmitters

Ready to Elevate Your Audio?

Talk to our sales team about finding the right Q5X wireless audio solution for your sport, venue, or production.
