Q5X TRANSMITTERS
Incognito™
Thin and Concealable
Micro-sized transmitter, in a flexible polymer, water-resistant case. Configured as 2 easily concealed components. With a detachable lithium polymer rechargeable battery and Lemo connector for a removable lavalier.
Analog
Incognito™
The two piece rubber case of the Incognito can be hidden in wigs, undergarments or in almost any costume or stage prop. The Incognito has full wireless remote control.
3 Battery Sizes
Safe & Comfortable
Thin & Flexible
Frequency Blocks
Low
470 - 540
MHz
Mid
525-600
MHz
High
600-700
MHz
$2,595 USD

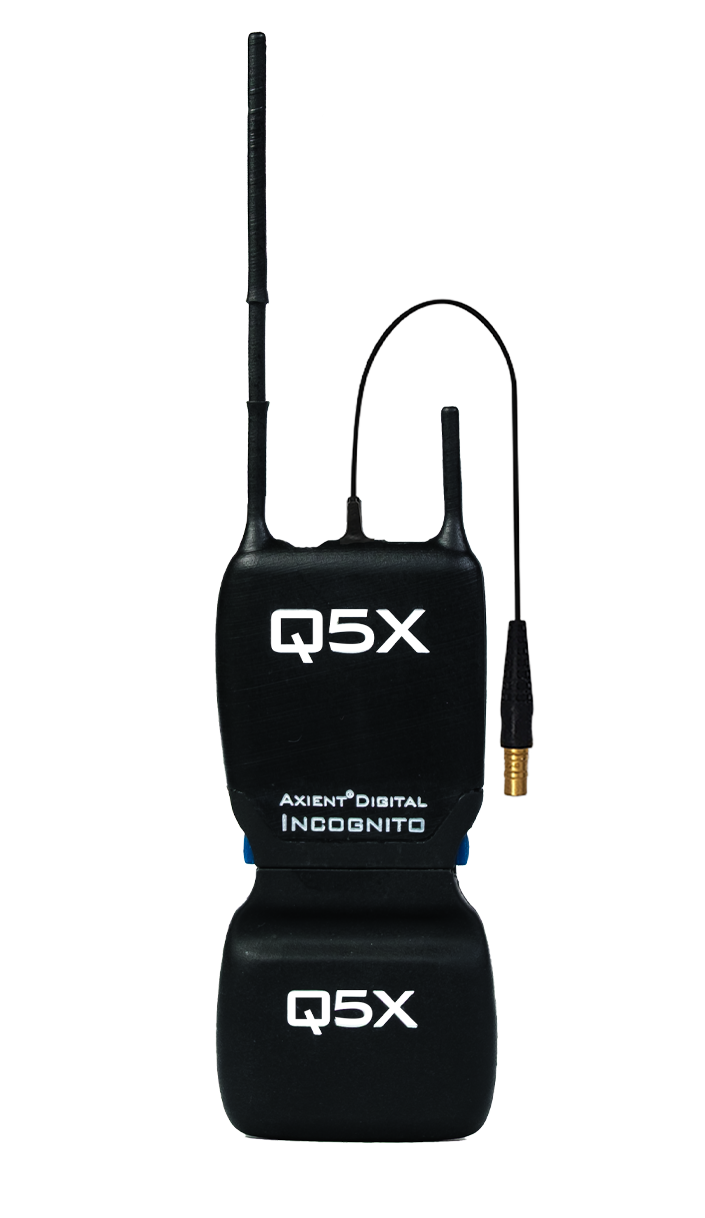

Axient Digital
Incognito™
Beyond being nearly invisible, the Incognito offers new USB-C power options,full wireless remote control and a sweatproof rubber housing that keeps talent comfortable.
USB Type-C Power
Talent Friendly
AES-256 Encryption
Frequency Blocks
G56
470 - 636
MHz
G57+
470-616
MHz
K55
606-694 MHz
X55
941-960
MHz
$2,595 USD
Tech Specs
| Specification | Axient Digital Incognito |
|---|---|
| Dimensions | 56mm x 46.8mm x 10.5mm |
| Weight (TX only) | 38.9 |
| Housing Material | Polymer Case |
| Encryption | AES 256 Encryption |
| RF Output Power | 2mW, 10mW, 20mW |
| UHF Frequency Range | 470–700 MHz, 941–960 MHz (4 blocks) |
| Tunable Bandwidth | Varies by block (25 kHz steps) |
| Modulation Type | Shure Axient Digital Proprietary |
| Mic Offset Gain Range | -12 to 21 dB (1 dB steps) |
| EIN (Equivalent Input Noise) | ≥ +20: -115 dBV, A-weighted, typical |
| Max Input Level | 1 kHz @ 1% THD, 3 dBV (5.0V) |
| Input Impedance | 8.2K with 5V Mic Bias |
| Frequency Response | 20 Hz – 20 KHz |
| Notes on Frequency Response | Dependent on microphone element |
| Audio Connector | 1 pin Lemo |
| Occupied Bandwidth | <200 kHz |
| Channel-to-Channel Spacing | 350 KHz (Standard), 125 KHz (High Density) |
| Antenna | 1/4 wave UHF and 2.4 GHz |
| Antenna Impedance | 50 Ohm |
| Battery | Removable Lithium Polymer |
| Operating Time (Battery) | ~8 hrs @ 10mW |
| Operating Temperatures | -20⁰C to 50⁰C |
| Storage Temperatures | -20⁰C to 45⁰C |
| Approvals | FCC, CE, Industry Canada |
| Battery Size | Runtime | Weight | Length | Width | Height |
|---|---|---|---|---|---|
| Small (500mAh) | 4hrs @50mW | 18.5g | 43mm | 29mm | 10mm |
| Medium (1000mAh) | 8hrs @50mW | 30.4g | 49mm | 38.5mm | 10mm |
| Large (2000mAh) | 16hrs @50mW | 48.3g | 58.5mm | 39mm | 13.5mm |
| Specifications | Analog Incognito |
|---|---|
| Transmitter Dimensions | 47.5 mm x 43 mm x 10.5 mm |
| Weight | 29.8 g |
| Housing Material | Polymer Case |
| RF Output Power | 10 mW to 100 mW (user selectable, subject to country restrictions) |
| Frequency Range | 470 to 700 MHz in 3 frequency blocks |
| Tunable Bandwidth | Varies by frequency block (25 kHz steps) |
| Modulation | FM |
| Nominal Deviation | ±40 kHz |
| Peak Deviation | ±54 kHz |
| Pre-emphasis | 50 µs |
| Compander | Q5X DCS-QT |
| Signal to Noise Ratio | 105 dB (A) rms |
| Frequency Stability | ±0.001% |
| Spurious Emission | < -60 dBc |
| Total Harmonic Distortion | 0.3% at nominal deviation |
| Frequency Response | 50 Hz to 17,000 Hz (dependent on microphone element) |
| Audio Connector | 1 pin Lemo |
| Antenna | ¼ wave UHF and 2.4 GHz |
| Battery Type | Lithium Polymer Battery Pack |
| Estimated Operating Time | See referenced table (not provided) |
| Operating Temperature Range | -10°C to 45°C |
| Regulatory Approvals | FCC, CE, Industry Canada |
| Compatible Receivers | - Lectrosonics: UCR411a, SRc Series, Venue2 - Sennheiser: UHF-R, EM 3732-COM-II P, EW 500 G4 945 - Wisycom: MCR54, MCR54-DUAL, MRK16 |
| Battery Size | Runtime | Weight | Length | Width | Height |
|---|---|---|---|---|---|
| Small (500mAh) | 4hrs @50mW | 18.5g | 43mm | 29mm | 10mm |
| Medium (1000mAh) | 8hrs @50mW | 30.4g | 49mm | 38.5mm | 10mm |
| Large (2000mAh) | 16hrs @50mW | 48.3g | 58.5mm | 39mm | 13.5mm |
