NESO 2.4
Lightweight, Long-Range and
All Day Battery Life
NESO 2.4
WAVENET’s long-awaited NESO 2.4 delivers a powerful, long-range IFB solution with up to 300 ft of coverage.
Featuring a wireless transmitter and your choice of in-ear or behind-the-ear receivers, the NESO 2.4 supports unlimited receivers per transmitter and pairing with up to three transmitters per receiver.
Choose from five receiver colors and enhance your setup with accessories like replacement speakers, ear domes, and cleaning kits.

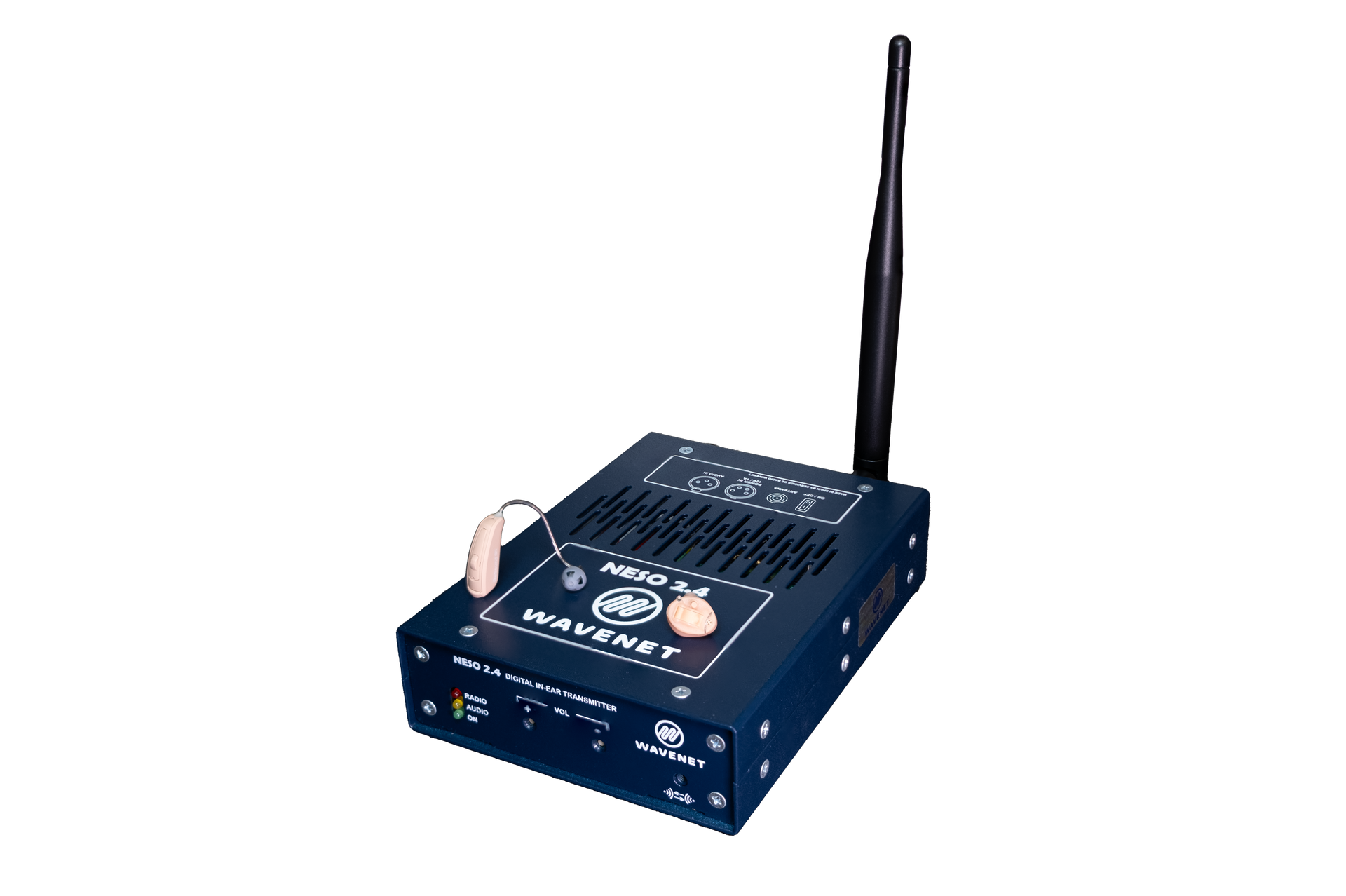

Transmitter
The transmitter operates at a 280 mW output on the 2.4 GHz ISM band with frequency hopping technology and GFSK modulation. This, combined with the use of virtually invisible receivers, allows for a strong and reliable radio link with a maximum latency of 20 ms, at a distance of 300 ft (100 m).
The frequency hopping system uses more than 80 carriers and 1,600 hops per second, making the chance of collision with other devices operating in the same ISM band virtually zero.
Settings on the transmitter are simple and easy to adjust. The volume control and LED indicators on the front of the transmitter let you know that everything is under control from just a glance.

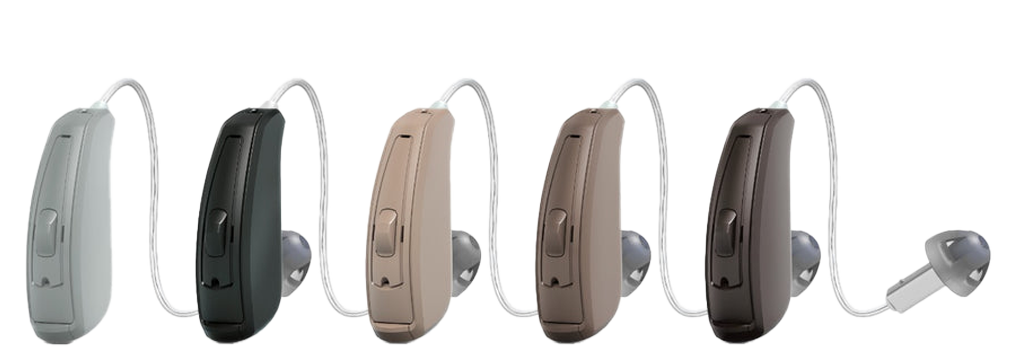

Behind-the-Ear Receiver
The NESO 2.4 features high quality behind-the-ear receivers with consumable 30 hour batteries. These receivers provide a nearly invisible solution for camera shots thanks to its ability to hide behind the wearer’s ear.
Each behind-the-ear receiver comes with 3 sizes of ear domes to provide the perfect fit in the ear canal and also allow the user to remain aware of the environmental ambient sound. This is advantageous over the traditional in-ear receivers that tend to block external noise like an earplug. Additionally, the speaker is replaceable, providing both technical and hygienic advantages.
The behind-the-ear receivers are also available in a rechargeable version with a 24 hour battery life and a rechargeable case for up to two receivers capable of providing 12 hours of battery life after charging for 3 hours.
Available in 5 different colours: Grey, Black, Beige, Brown, and Dark Brown.

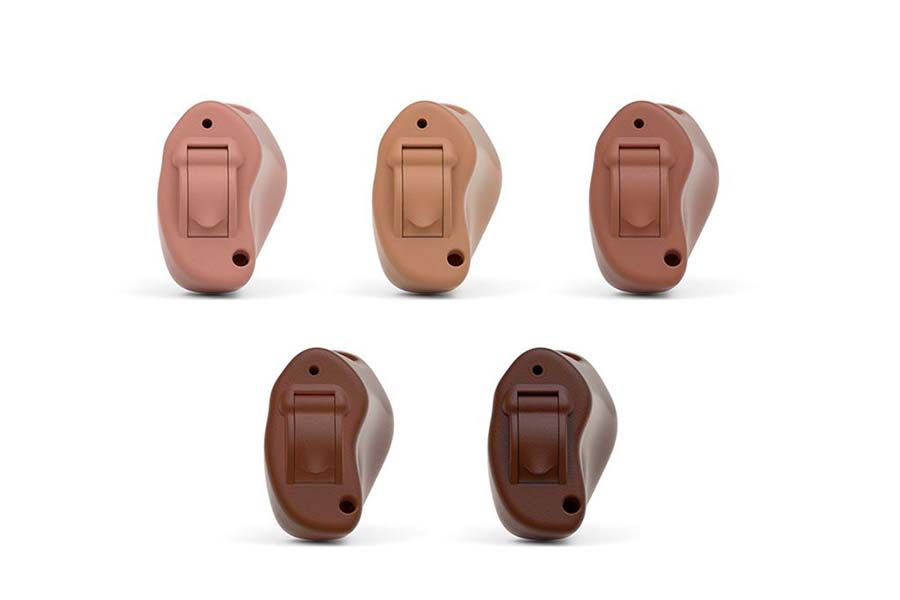

In-Ear Receiver
For those seeking a discreet and lightweight option, the in-ear version is ideal. Its low-profile design and impressive 25-hour battery life ensure that users hear every important detail.
The in-ear receiver offers a seamless, discreet look, perfect for news anchors, television hosts, and a wide range of live performers. This receiver provides excellent audio clarity and reliability, ensuring that communication is never compromised, even in high-pressure environments.
Available in five different colours—Light, Beige, Light Brown, Brown, and Dark Brown—the in-ear receiver can blend seamlessly with various skin tones for a natural appearance.
With the in-ear version, users can enjoy both comfort and performance, making it an exceptional choice for professional communication needs.
Tech Specs
Transmitter
Audio in level | 0.775 V |
---|---|
Audio Connector | XLR3 H: Line +4 dB. Balanced |
Audio Bandwidth | 50 Hz – 10 kHz |
Latency | 20 ms max. |
Frequency | ISM 2.4 band (UN/85) |
Output Power(Conducted) | +24.5 dBm (280 mW) |
Antenna | RP-SMA 5 dBi omnidirectional antenna |
Modulation | GFSK |
Carrier Type | Frequency hopping (FH) |
Range (LOS) | Up to 300 ft (100 m), depending on environment |
Dimensions | 155 x 115 x 35 mm |
Weight | 300 g |
Power Supply | 12 V/1 A |
Power Supply Connector | XLR4 M (1 GND, 4 +) |
Operation Conditions | 0 ̊- 45 ̊C and relative humidity of < 95% (non-condensing) |
Homologation Reference | USA FCC ID: 2BC55NESO24-23 CANADA ISED ID: 31435-NESO24-23 |
Receivers
Behind-The-Ear | In-Ear | |
---|---|---|
Battery | 312 Zinc/Air, Internal Rechargeable | 10 A Zinc/Air |
Power Consumption | 1.13 mA | 1.15 mA |
RF Frequency | 2.4 ISM | 2.4 ISM |
Audio Bandwidth | 100 Hz – 9.5 kHz | 100 Hz – 9.5 kHz |
Distortion | 0.60% | 0.50% |
Maximum SPL | 100 dB | 100 dB |
Regulations | Complies with FCC (CFR 47 part 15-C), ISED and UE regulations | Complies with FCC (CFR 47 part 15-C), ISED and UE regulations |
