Q5X TRANSMITTERS
PlayerMic®
Flexible. Thin. Safe.
Developed for the NBA. The PlayerMic the world’s first flexible rubber bodypack and it’s designed to protect the player from injury if they fall on it or take a direct hit.
Axient Digital
Analog
Micro-sized transmitter in a flexible polymer, water resistant case.
With an internal lithium polymer rechargeable battery and Lemo connector for a removable lavalier.

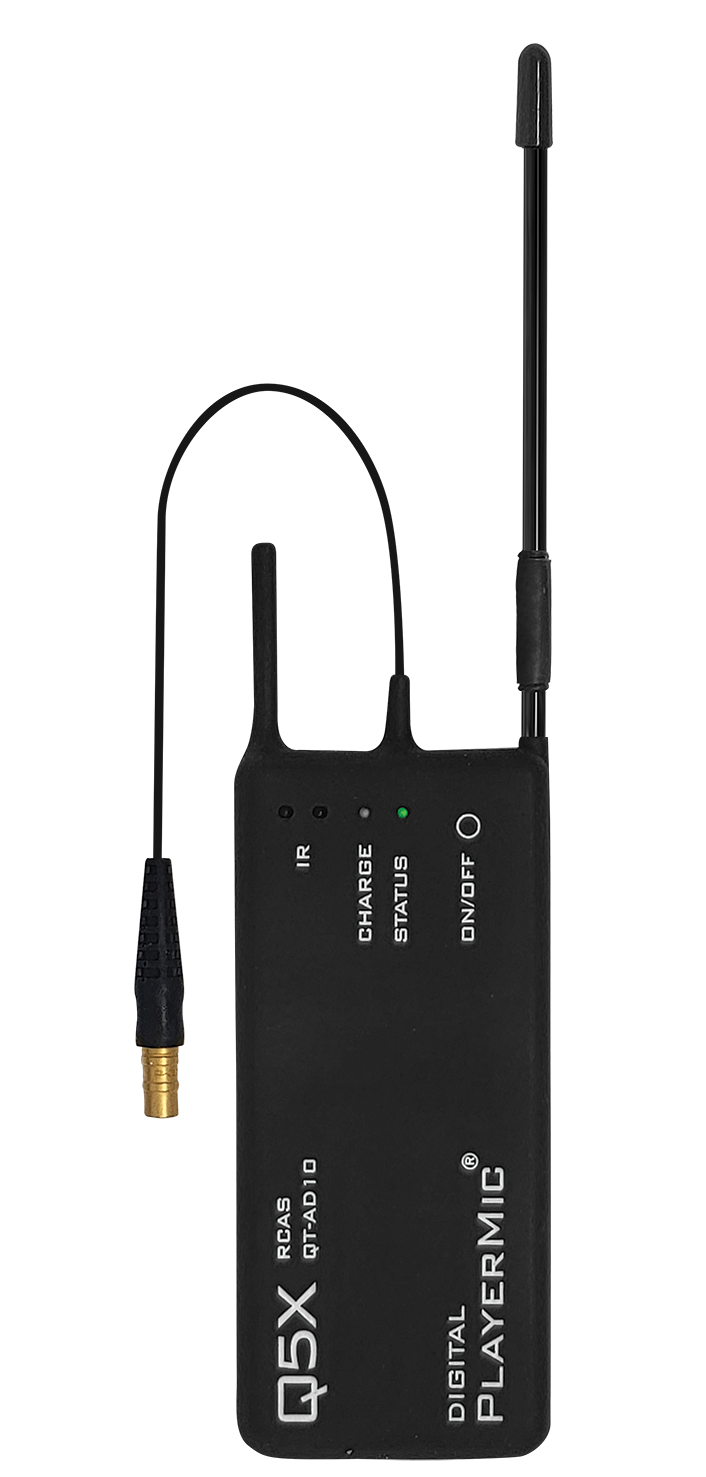

PlayerMic®
8 hr
Battery
Safe & Comfortable
Thin
& Flexible
Frequency Blocks
G56
470 - 636 MHz
6640 Channels
G57
470 - 608 MHz
5520 Channels
K55
606 - 694 MHz
3520 Channels
X55
941 - 960 MHz
780 Channels
$2,695 USD

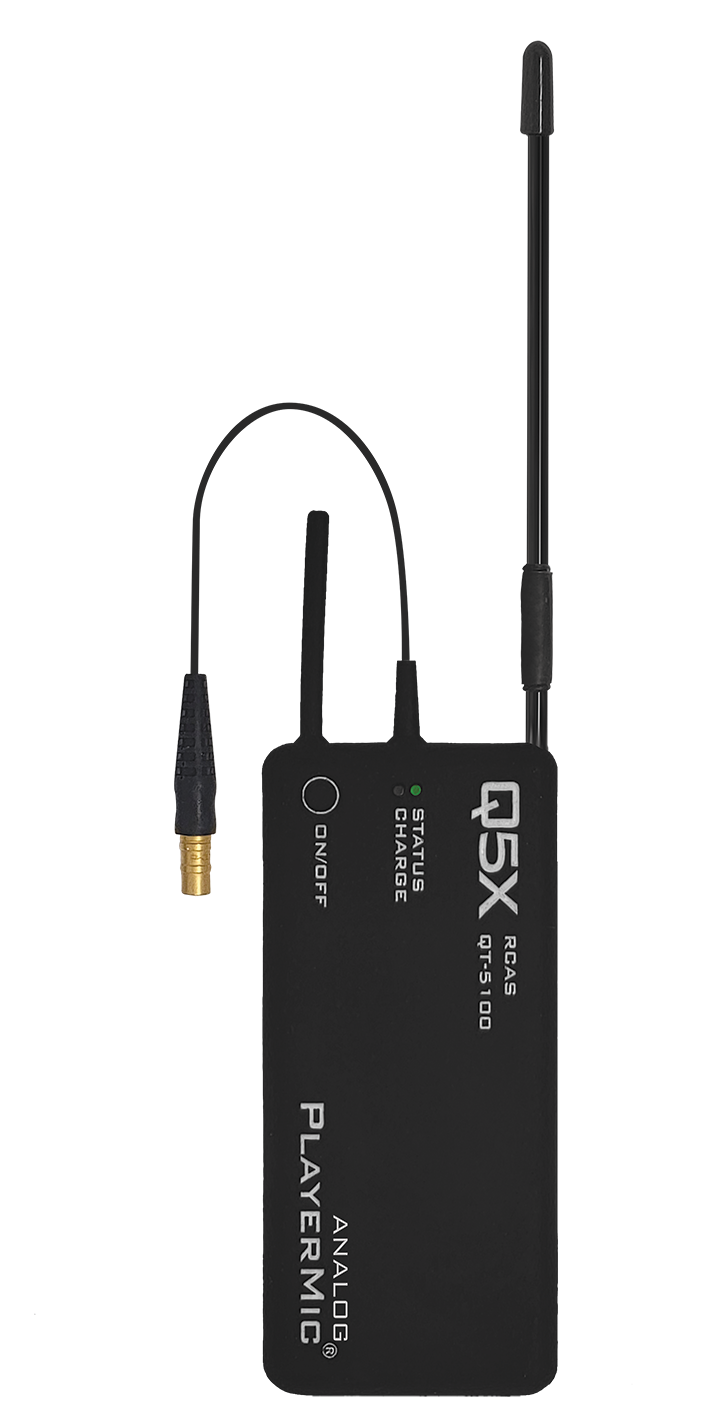

PlayerMic®
Micro-sized transmitter in a flexible polymer, water resistant case.
With an internal lithium polymer rechargeable battery and Lemo connector for a removable lavalier.
8 hr
Battery
Safe &
Comfortable
Thin
& Flexible
Frequency Blocks
470 - 540 MHz
525-600 MHz
600-700 MHz
$2,495 USD
Axient Digital
Analog
Micro-sized transmitter in a flexible polymer, water resistant case.
With an internal lithium polymer rechargeable battery and Lemo connector for a removable lavalier. 40% smaller than the original PlayerMic.

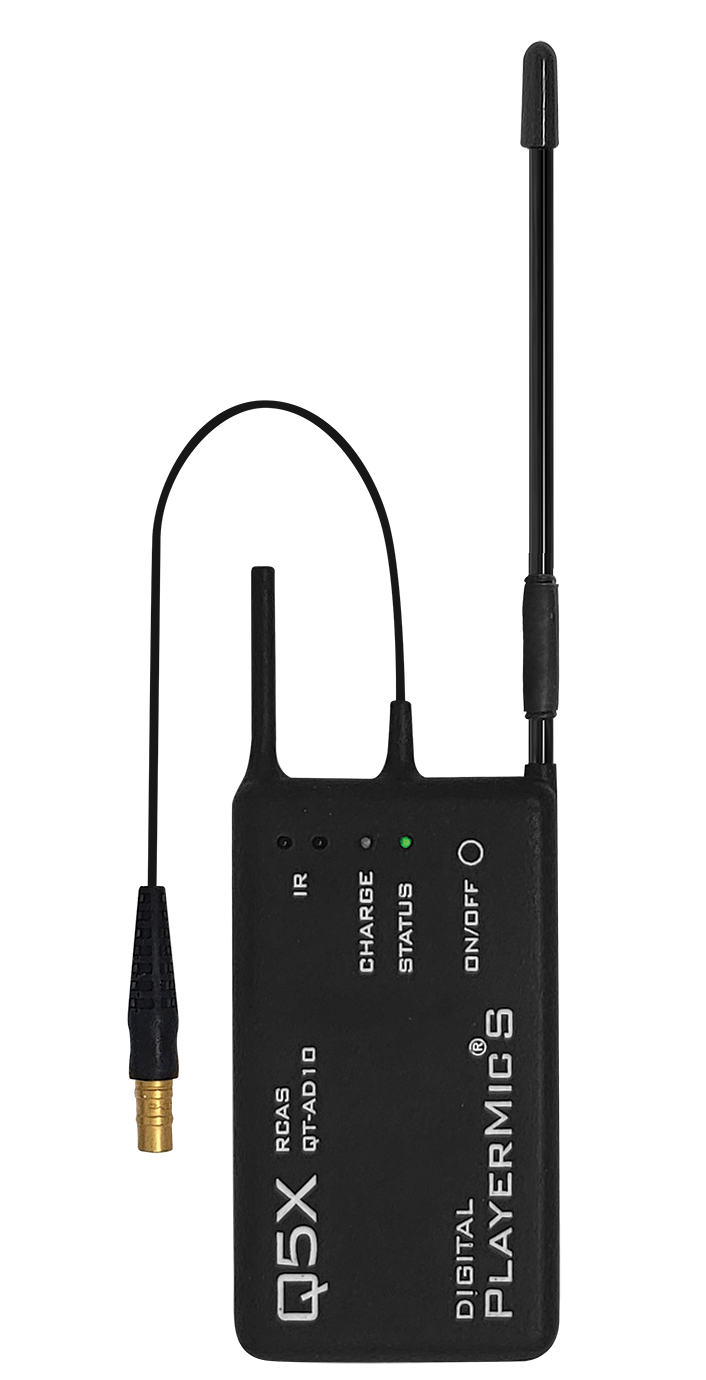

PlayerMic®S
4 hr
Battery
Safe &
Comfortable
Thin
& Flexible
Frequency Blocks
G56
470 - 636 MHz
6640 Channels
G57
470 - 608 MHz
5520 Channels
K55
606 - 694 MHz
3520 Channels
X55
941 - 960 MHz
780 Channels
$2,695 USD

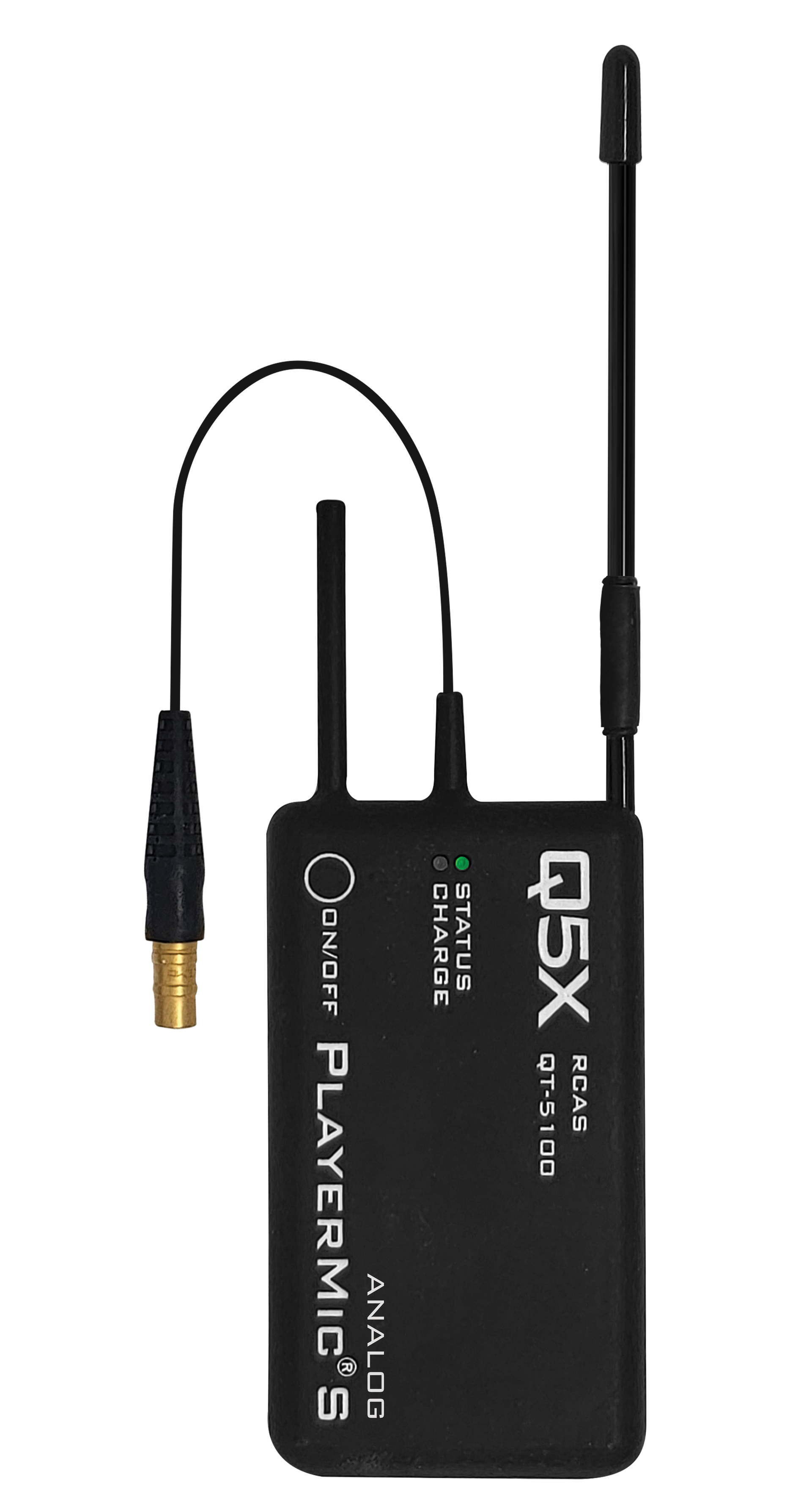

PlayerMic®S
Micro-sized transmitter in a flexible polymer, water resistant case.
With an internal lithium polymer rechargeable battery and Lemo connector for a removable lavalier. 40% smaller than the original PlayerMic.
4 hr
Battery
Safe &
Comfortable
Thin
& Flexible
Frequency Blocks
470 - 540 MHz
525-600 MHz
600-700 MHz
$2,495 USD
Tech Specs
Axient Digital PlayerMic
Analog PlayerMic
Axient Digital PlayerMicS
Analog PlayerMicS
- Dimensions: 93.5mm x 41.5mm x 11.5mm
- Weight: including battery, 60.7 g
- Housing Material: Polymer Case
- Encryption: AES 256 Encryption
- RF output power: 2mW, 10mW, 20mW (user selectable, country restrictions apply)
- UHF frequency range: 470 to 700 MHz and 941 to 960 MHz in 4 frequency blocks
- Tunable bandwith: Varies by frequency block (25 kHz steps)
- Modulation type: Shure Axient Digital Proprietary
- Mic offset gain range: -12 to 21 dB (in 1 dB steps)
- Pre-amplifier Equivalent Input Noise (EIN): System gain setting ≥ +20: -115 dBV, A-weighted, typical
- Maximum input level: 1 kHz at 1% THD, 3 dBV (5.0V)
- Input impedance: 8.2K with 5V Mic Bias
- Frequency response: 20 Hz to 20 KHz
- Note: system frequency response is dependent on the microphone element
- Audio connector: 1 pin Lemo
- Occupied bandwidth: <200 kHz
- Channel-to-Channel spacing
- Standard Mode – 350 KHz
- High Density Mode – 125 KHz
- Antenna: 1/4 wave UHF and 2.4 GHz
- Antenna impedance: 50 Ohm
- Battery: Internal Lithium Polymer
- Operating time: (Battery) estimated 8 hrs @ 10mW
- Operating temperatures: -20⁰C to 50⁰C
- Storage temperatures: -20⁰C to 45⁰C
- Approvals: FCC, CE, Industry Canada
- Compatible Receivers: AD4Q, AD4D, AD5XD
- Dimensions: 97.5mm x 42mm x 11.5mm
- Weight: including battery, 62.4g
- Housing Material: Polymer Case
- RF output power: 10mW to 100mW (user selectable, country restrictions apply)
- UHF frequency range: 470 to 700 MHz in 3 frequency blocks
- Tunable bandwith: Varies by frequency block (25 kHz steps)
- Modulation: FM
- Nominal deviation: +/- 40 kHz
- Peak deviation: +/- 54 kHz
- Pre-emphasis: 50 us
- Compander: Q5X DCS-QT
- Signal to Noise: 105dB (A) rms
- Frequency stability: +/- 0.001%
- Spurious emission: <- 60 dBc
- Total harmonic distortion (THD): 0.3% at nominal deviation
- Frequency response: 50 Hz to 17,000 Hz
- Note: system frequency response is dependent on the microphone element
- Audio connector: 1 pin Lemo
- Antenna: 1/4 wave UHF and 2.4 GHz
- Battery: Internal Lithium Polymer
- Operating time: (Battery) estimated 8 hrs @ 50mW
- Operating temperatures: -10⁰C to 45⁰C
- Approvals: FCC, CE, Industry Canada
- Compatible Receivers: UCR411a – Lectrosonics , SRc Series – Lectrosonics , Venue2 – Lectrosonics, UHF-R Specification Sheet, EM 3732-COM-II P, Wireless microphone set EW 500 G4 945 | Sennheiser, MCR54 , MCR54-DUAL , MRK16
- Dimensions: 74.5mm x 41.5mm x 11.5mm
- Weight: including battery, 48.6 g
- Housing Material: Polymer Case
- Encryption: AES 256 Encryption
- RF output power: 2mW, 10mW, 20mW (user selectable, country restrictions apply)
- UHF frequency range: 470 to 700 MHz and 941 to 960 MHz in 4 frequency blocks
- Tunable bandwith: Varies by frequency block (25 kHz steps)
- Modulation type: Shure Axient Digital Proprietary
- Mic offset gain range: -12 to 21 dB (in 1 dB steps)
- Pre-amplifier Equivalent Input Noise (EIN): System gain setting ≥ +20: -115 dBV, A-weighted, typical
- Maximum input level: 1 kHz at 1% THD, 3 dBV (5.0V)
- Input impedance: 8.2K with 5V Mic Bias
- Frequency response: 20 Hz to 20 KHz
- Note: system frequency response is dependent on the microphone element
- Audio connector: 1 pin Lemo
- Occupied bandwidth: <200 kHz
- Channel-to-Channel spacing
- Standard Mode – 350 KHz
- High Density Mode – 125 KHz
- Antenna: 1/4 wave UHF and 2.4 GHz
- Antenna impedance: 50 Ohm
- Battery: Internal Lithium Polymer
- Operating time: (Battery) estimated 4 hrs @ 10mW
- Operating temperatures: -20⁰C to 50⁰C
- Storage temperatures: -20⁰C to 45⁰C
- Approvals: FCC, CE, Industry Canada
- Compatible Receivers: AD4Q,
AD4D,
AD5XD
- Dimensions: 74.5mm x 42mm x 11.5mm
- Weight: including battery, 46.3g
- Housing Material: Polymer Case
- RF output power: 10mW to 100mW (user selectable, country restrictions apply)
- UHF frequency range: 470 to 700 MHz in 3 frequency blocks
- Tunable bandwith: Varies by frequency block (25 kHz steps)
- Modulation: FM
- Nominal deviation: +/- 40 kHz
- Peak deviation: +/- 54 kHz
- Pre-emphasis: 50 us
- Compander: Q5X DCS-QT
- Signal to Noise: 105dB (A) rms
- Frequency stability: +/- 0.001%
- Spurious emission: <- 60 dBc
- Total harmonic distortion (THD): 0.3% at nominal deviation
- Frequency response: 50 Hz to 17,000 Hz
- Note: system frequency response is dependent on the microphone element
- Audio connector: 1 pin Lemo
- Antenna: 1/4 wave UHF and 2.4 GHz
- Battery: Internal Lithium Polymer
- Operating time: (Battery) estimated 4 hrs @ 50mW
- Operating temperatures: -10⁰C to 45⁰C
- Approvals: FCC, CE, Industry Canada
- Compatible Receivers: UCR411a – Lectrosonics , SRc Series – Lectrosonics , Venue2 – Lectrosonics,
UHF-R Specification Sheet,
EM 3732-COM-II P,
Wireless microphone set EW 500 G4 945 | Sennheiser,
MCR54 , MCR54-DUAL , MRK16
