Incognito™

Incognito™

The two piece rubber case of the Incognito can be hidden in wigs, undergarments or in almost any costume or stage prop. The Incognito has full wireless remote control.

Frequency Blocks

$2,595 USD

• Dimensions of transmitter: 47.5mm x 43mm x 10.5mm
• Weight of transmitter: 29.8g
• Housing Material: Polymer Case
• RF output power: 10mW to 100mW (user selectable, country restrictions apply)
• UHF frequency range: 470 to 700 MHz in 3 frequency blocks
• Tunable bandwith: Varies by frequency block (25 kHz steps)
• Modulation: FM
• Nominal deviation: +/- 40 KHz
• Peak deviation: +/- 54 KHz
• Pre-emphasis: 50 us
• Compander: Q5X DCS-QT
• Signal to Noise: 105dB (A) rms
• Frequency stability: +/- 0.001%
• Spurious emission: <- 60 dBc
• Total harmonic distortion (THD): 0.3% at nominal deviation
• Frequency response: 50 Hz to 17,000 Hz
• Note: System frequency response is dependent on the microphone element
• Audio connector: 1 pin Lemo
• Antenna: 1/4 wave UHF and 2.4 GHz

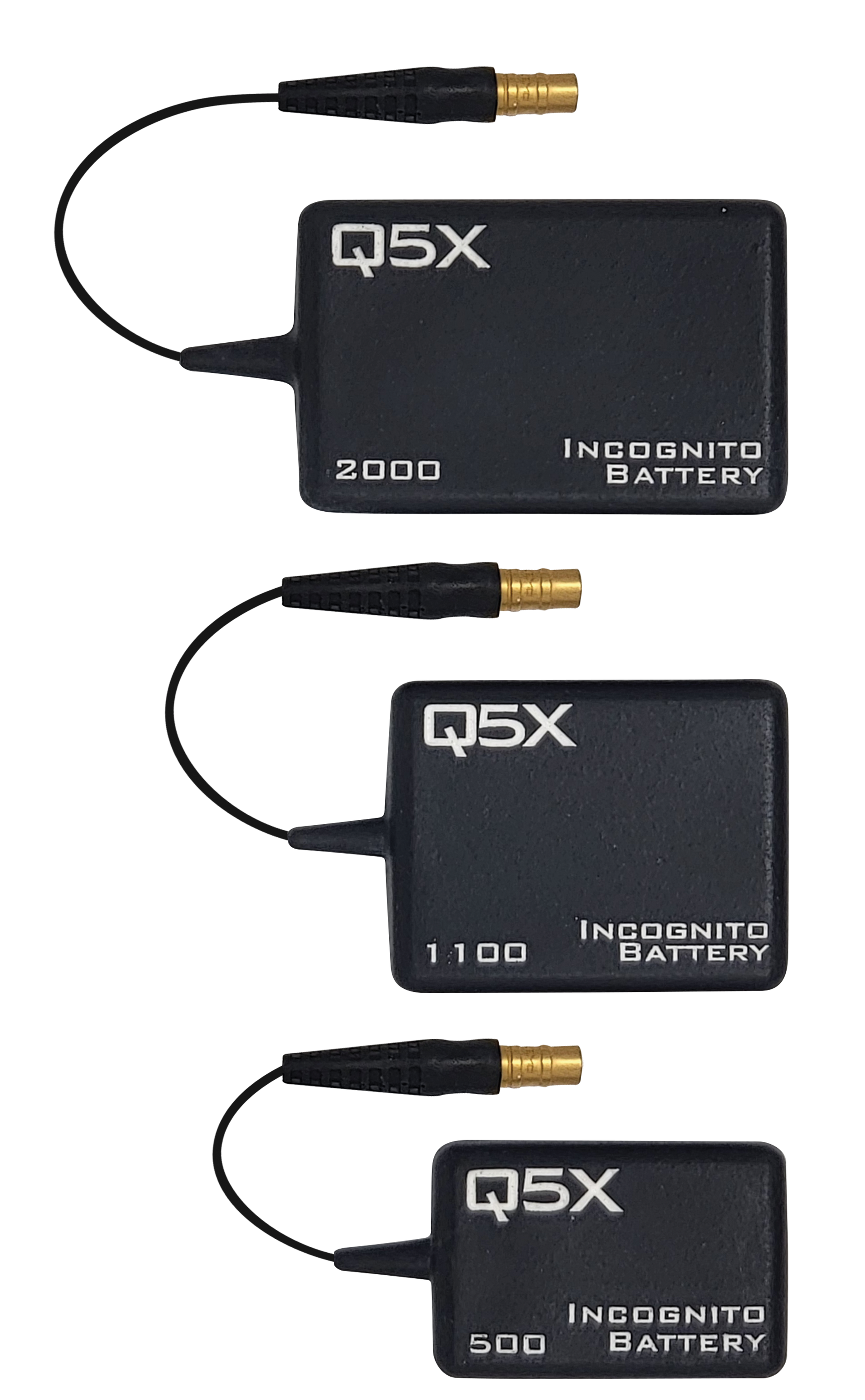

• Battery: Lithium Polymer Battery Pack
• Operating time: (Battery) estimated, See Table Below
• Operating temperatures: -10⁰C to 45⁰C
• Approvals: FCC, CE, Industry Canada
• Compatible Receivers: UCR411a – Lectrosonics , SRc Series – Lectrosonics , Venue2 – Lectrosonics, UHF-R Specification Sheet, EM 3732-COM-II P, Wireless microphone set EW 500 G4 945 | Sennheiser, MCR54 , MCR54-DUAL , MRK16
